DUALF-D: Disentangled dual-hyperprior approach for light field image compression

1Mid Sweden University, Department of Computer and Electrical Engineering, Sundsvall, Sweden 2INRIA, Rennes, France

VAE_LF_COMPRESSION

Abstract

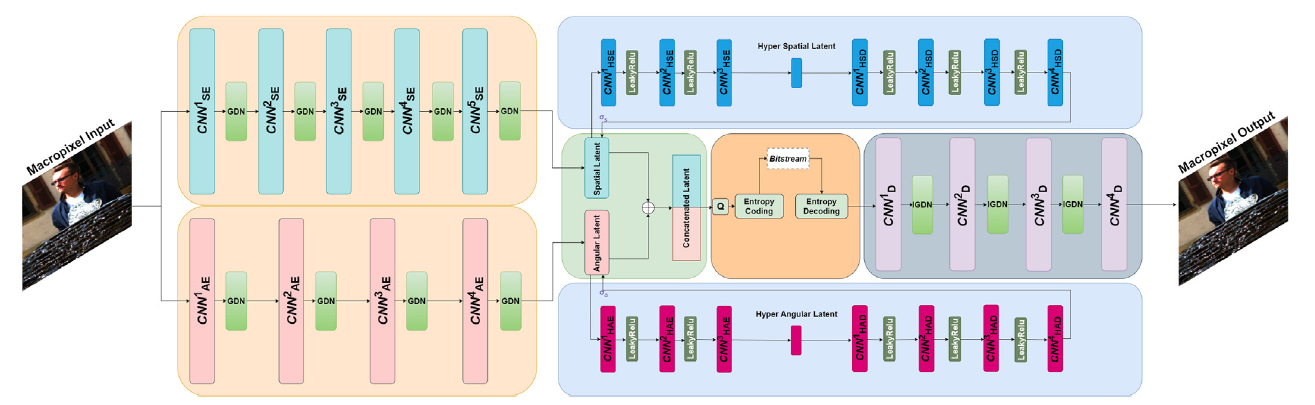

Light field (LF) imaging captures spatial and angular information, offering a 4D scene representation enabling enhanced visual understanding. However, high dimensionality and redundancy across spatial and angular domains present major challenges for compression, particularly where storage, transmission bandwidth, or processing latency are constrained. We present a novel Variational Autoencoder (VAE)-based framework that explicitly disentangles spatial and angular features using two parallel latent branches. Each branch is coupled with an independent hyperprior model, allowing more precise distribution estimation for entropy coding and finer rate–distortion control. This dual-hyperprior structure enables the network to adaptively compress spatial and angular information based on their unique statistical characteristics, improving coding efficiency. To further enhance latent feature specialization and promote disentanglement, we introduce a mutual information-based regularization term that minimizes redundancy between the two branches while preserving feature diversity. Unlike prior methods relying on covariance-based penalties prone to collapse, our information-theoretic regularizer provides more stable and interpretable latent separation. Experimental results on publicly available LF datasets demonstrate our method achieves strong compression performance, yielding an average BD-PSNR gain of 2.91 dB over HEVC and high compression ratios (e.g., 200:1). Additionally, our design enables fast inference, with a total end-to-end time over 19x faster than the JPEG Pleno standard, making it well-suited for real-time and bandwidth-sensitive applications. By jointly leveraging disentangled representation learning, dual-hyperprior modeling, and information-theoretic regularization, our approach offers a scalable, effective solution for practical light field image compression.

Rate-Distortion (RD) Graph

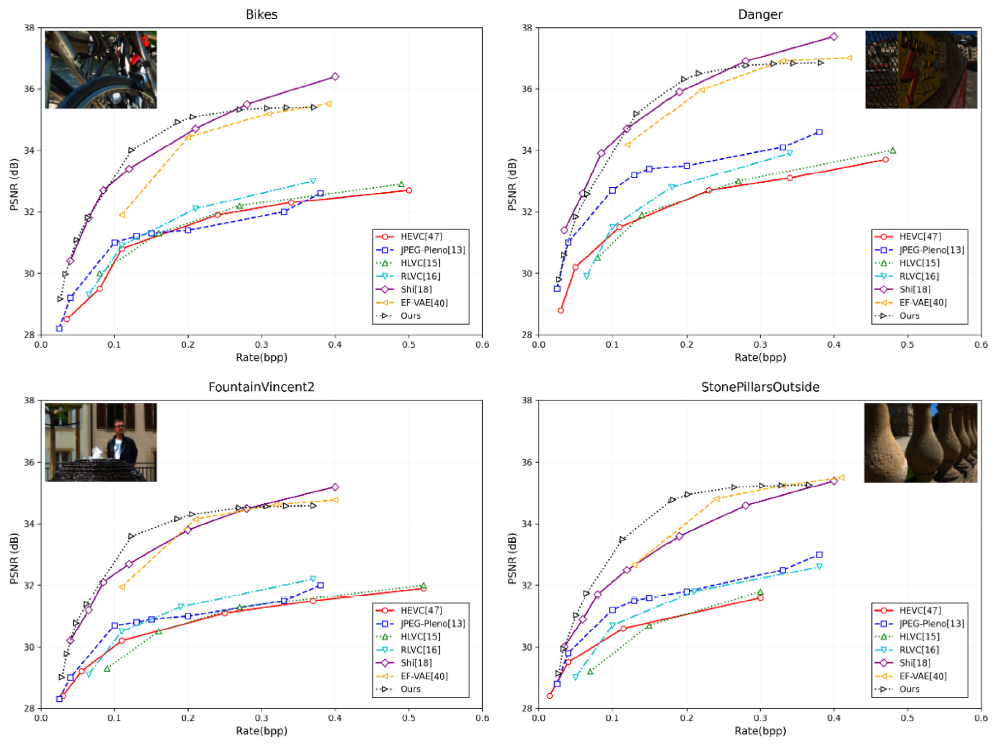

Rate-Distortion (RD) curve comparing the performance of our proposed VAE-based light field compression method against HEVC, RLVC, HLVC, JPEG-Pleno, and Shi’s method . Our method consistently outperforms the others across most datasets in terms of compression efficiency and image reconstruction quality, except for Shi’s method, which shows superior results on a few specific datasets.

Encoding and Decoding Time Comparison

Disparity map comparisons and error distributions

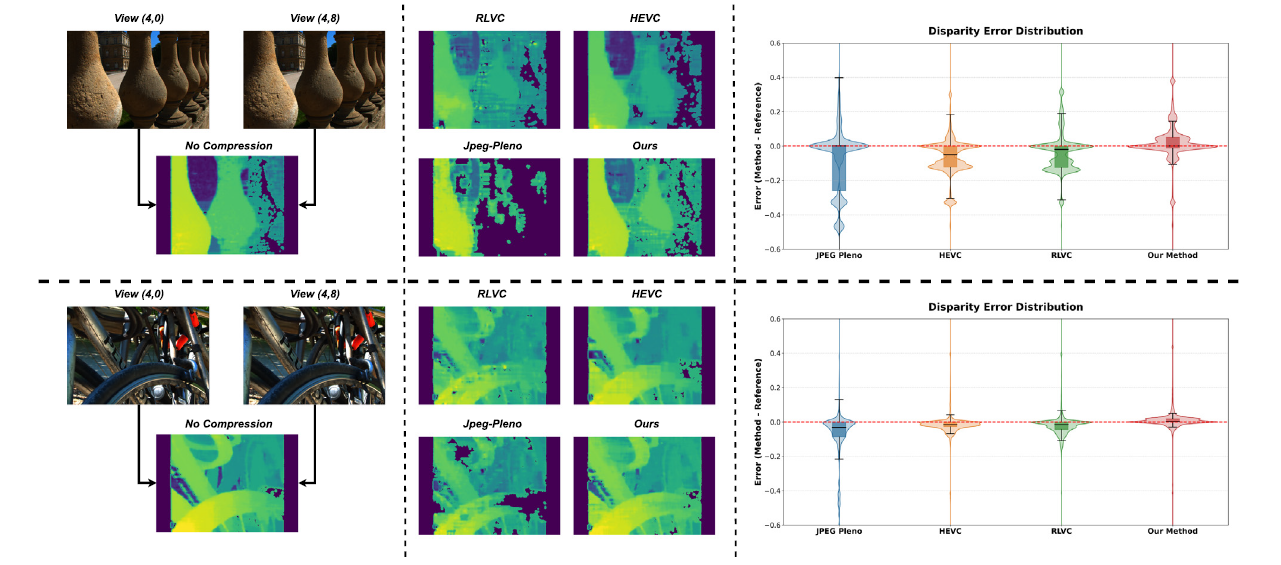

Disparity map comparisons and error distributions for two EPFL scenes for four methods: RLVC, HEVC, JPEG-Pleno, and our proposed approach

Encoding and Decoding Time Comparison
0.1

Bikes

Ours Jpeg-Pleno

Danger

Ours Jpeg-Pleno

Fountain

Ours Jpeg-Pleno

Pillars

Ours Jpeg-Pleno

Reconstructed views

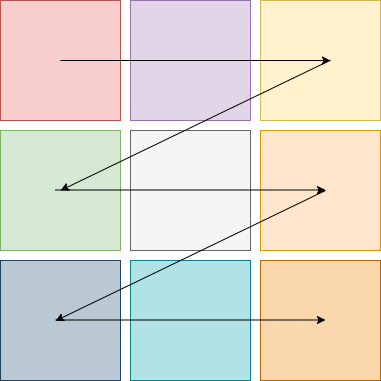

3x3 moving across views for reconstructed LFs

Encoding and Decoding Time Comparison

Jpeg-Pleno

Ours

RLVC

3D viewing by eye crossing Left and Right views

Encoding and Decoding Time Comparison

Ours

Left Ours
Right Ours

Jpeg-Pleno

Left AdaMPI
Right AdaMPI

RLVC

Left SinMPI
Right SinMPI

BibTeX

@article{takhtardeshir5294260dualf,
  title={Dualf-D: Disentangled Dual-Hyperprior Approach for Light Field Image Compression},
  author={Takhtardeshir, Soheib and Olsson, Roger and Guillemot, Christine and Sj{\"o}str{\"o}m, M{\aa}rten},
  journal={Available at SSRN 5294260}
}
